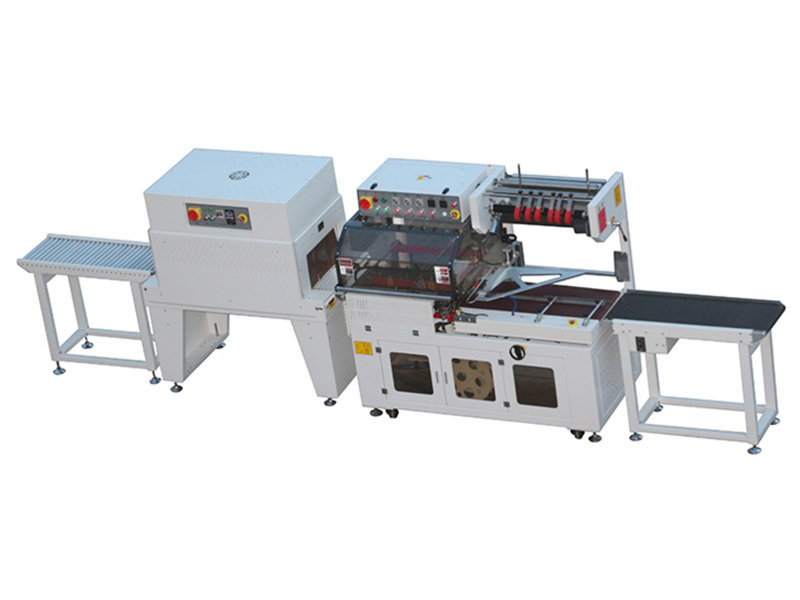

Full automatic L-type sealing, cutting and shrinking machine

The function introduction of the automatic L-type sealing, cutting and shrinking machine is to automatically wrap the shrink film on the outside of the package, then heat the packaging material to shrink and wrap the product tightly, and use photoelectric to automatically detect the product to realize automatic unmanned packaging. It has high work efficiency and is suitable for packaging products of different types, sizes and switches. It is widely used in food, medicine, aluminum profile, water pipe, printing, photo frame, electronics, daily chemicals, cosmetics and other mass production industries. It plays a role in moisture-proof, pollution prevention and avoiding certain external impact. Cost saving is a better way to improve competitiveness. It is a difficult problem to effectively save cost and maintain quality. Pq-400lac / pq-400la can achieve the purpose of improving cost-effectiveness. It has continuous sealing action, so that its packaging speed can reach 1-30 bags per minute. The design of fully automatic operation and high-efficiency packaging can save manpower. It is equipped with high-speed cylinder control system and finger push conveying system, so that the machine can still maintain stability under high-speed operation, and the side sealing device can reduce the generation of residual film, Effectively reduce material costs. According to different products, different simple and multi-functional product conveying systems are configured to automate the production line and save workers' costs. With the help of different conveying systems, the machinery can be easily integrated with the production line to meet different needs.

1) Taiwan Yonghong programmable controller is adopted to realize the computer Electricity Gas integration

2) Photoelectric switch automatically detects that the product is in place

3) Use imported spare parts to ensure the stability of the machine at high speed;

4) The L-shaped cutter is driven by the vertical system to ensure that the sealing line is straight and firm;

5) It has a wide range of packaging and can package products of various sizes and shapes;

6) Packaging capacity, up to 1-30 pieces per minute

7) The specially designed V-shaped sealing knife is adopted, the sealing line is firm and does not split, the external part of the knife body is plated with high temperature resistant Teflon, there is no mucous membrane, the knife does not stick, the sealing has no peculiar smell, and the servo cutter controls the sealing up and down to cut off more accurately

8) The limit switch sends film, which greatly reduces the loss of film

9) The film feeding device is driven by the synchronous belt, and the operation is more stable and accurate without noise

10) The original Omron digital display temperature controller imported from Japan has accurate temperature and can directly see the sealing, cutting and shrinkage temperature

11) The transmission adopts the reduction motor to control the front and rear transmission speed, and the transmission of the brake controller is more stable

12) The super large air volume cools the air flow, and the product cools rapidly after thermal expansion, shrinks and sets

13) The machine adopts stainless steel 304 heating tube for heating

14) The constant temperature circulating air duct system makes the temperature in the shrinkage bin more uniform and makes the shrinkage products achieve good results

15) The solid wire drawing steel rod is wrapped with imported silicone hose, and the chain rod conveying is durable. The conveying structure of different materials can be adopted according to different products

16) The shrink film is placed in the lower half of the machine to facilitate the replacement of the shrink film and prevent employees from injury due to strain when replacing the shrink film

17) Portable punching device, flexible adjustment and convenient replacement. Imported fiber roller replaces rubber roller, which is durable

18) Different product conveying devices can be configured to form a full-automatic production line suitable for customers

19) The fee film system can effectively reduce the number of remaining films and save packaging costs for customers. Compared with other machinery, it can save 2% to 5% of material costs

20) Packaging: totally enclosed packaging (paint baking color and rack material are optional)

21) environmental friendly POF shrinkable film 1.2-3.8 filaments (radiation changing molecular cross-linked films can also be used in the market)

Equipment configuration table: model pq-400lac / pq-400la
